If you look at a Formula 1 car from the side, it might look like a hyper-fast go-kart with a bunch of wings and sponsor decals. But strip away the carbon-fiber bodywork, and you are looking at a wild engineering puzzle where every single millimeter counts.
F1 car designers do not just fight for speed; they fight for packaging. The challenge is to cram a human, a 1000-horsepower hybrid power unit, a fuel tank, a gearbox, and complex electronics into a tight carbon-fiber cocoon so that the machine does not roll over in corners, does not overheat, and outpaces everyone else. Let us break down how this Tetris on wheels is built.
1. Monocoque: Safety Tub and the Driver's Office
At the core of the entire build is the monocoque, also known as the cockpit or survival cell. It is an ultra-strong tub made of carbon fiber and an aluminum or Kevlar honeycomb core. It acts simultaneously as a rigid chassis to which everything else is attached and as a survival capsule.

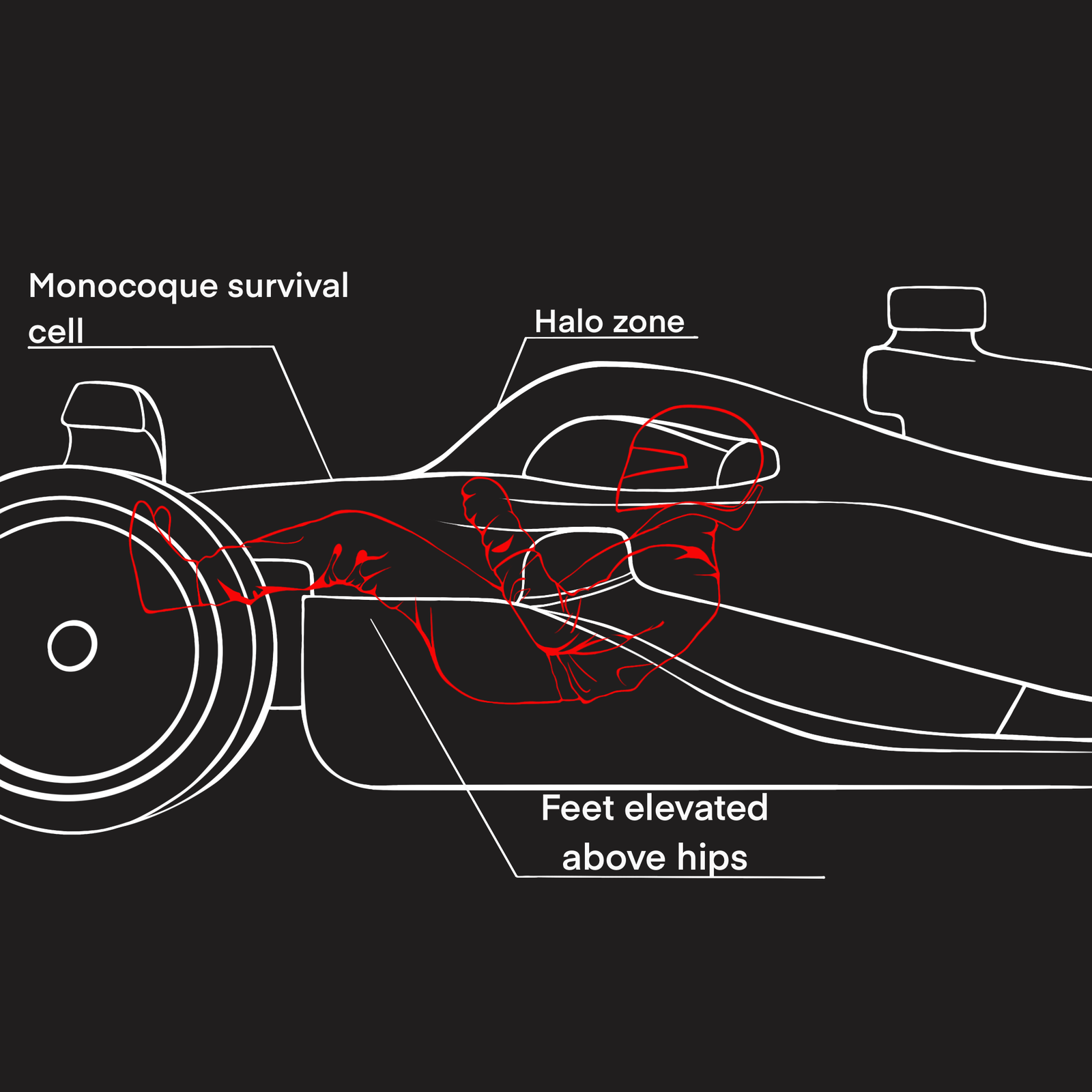

How Does the Driver Sit?
Forget about comfortable seats with adjustable backrests. An F1 driver is almost lying down.
• Position: Legs are raised high up (roughly at chest level and above the front wheels), with the back reclined at an angle of about 30 to 40 degrees. This is done to minimize frontal aerodynamic drag as much as possible and keep the center of gravity as low to the ground as possible.
• Seat Fitting: The seat is custom-molded for each driver. Drivers are literally forced to sit in liquid foam, which hardens and mirrors every contour of their body. There are no soft cushions in a seat like this; every bump on the kerb is transmitted directly into the spine.
• Halo System: The titanium wishbone above the driver's head. It can withstand the weight of two double-decker London buses (around 12 tonnes) and protects the driver's head from flying wheels and debris.
2. Fuel Tank: Between the Driver's Back and Hell
Located directly behind the driver's back, but ahead of the engine, sits the fuel tank. Refueling has been banned in F1 since 2010, so around 110 kg of fuel is pumped into it before the start of the race.
• It is not a metal canister: The tank is made of a flexible Kevlar-rubber bladder (an impact-resistant soft fuel cell) to prevent it from tearing and causing a firestorm during a crash.
• Internal Baffles: Inside the tank is a complex system of baffles and one-way valves. Without them, braking from 300 km/h would send all the fuel sloshing forward, drastically shifting the car's balance and starving the fuel pump.
3. Power Unit and Gearbox: The Heart and Tail
Behind the fuel tank begins the domain of mechanical components and hybrid technology:
1. ICE (Internal Combustion Engine): A turbocharged V6 engine with a displacement of just 1.6 liters. It is bolted directly to the monocoque and acts as a stress-bearing chassis element to which the rear section of the car is attached.
2. Hybrid Modules (MGU-K and MGU-H): Electric motor-generators and the turbocharger are tightly packaged around the cylinder block.
3. Battery (Energy Store): Positioned as low as possible — usually directly under the fuel tank or beneath the engine — to lower the center of gravity.
4. Gearbox: The eight-speed sequential gearbox is located behind the engine. Its casing is often made of titanium or carbon fiber, and the rear suspension mounts directly to it.
All these components bolt together to form a single rigid backbone: Monocoque -> Fuel Tank -> Engine -> Gearbox. An F1 car does not have a traditional spaceframe to mount everything on; the engine and gearbox themselves function as structural members of the chassis!
4. Why Weight Balance and Distribution Are Everything
You could build a 1500-horsepower engine and design perfect wings, but if you distribute the weight incorrectly, the car will turn into an undriveable brick.
What Is the Center of Gravity and Why Must It Be in the Floor?
The lower the Center of Gravity (CoG), the less the car rolls in corners and dives under heavy braking. That is why engineers attempt to position heavy components (batteries, engine, the driver) as close to the asphalt as possible.
Static Weight Distribution Across Axles
FIA regulations strictly dictate the minimum weight of the car (798 kg including the driver) and the front-to-rear mass balance ratio (roughly 45-46% front and 54-55% rear).
• Too much weight upfront: The front tires overload and degrade rapidly, while the rear breaks loose under acceleration.
• Too much weight in the rear: The front washes out in corners (understeer), making the car unresponsive to steering inputs.
The Fuel Consumption Challenge During a Race
At the start of a race, the car weighs 798 kg + 110 kg of fuel = 908 kg. By the end of the race, the tank is empty, and the car is 110 kg lighter! Because the fuel cell is located directly between the driver and the engine (very close to the center of mass), as the fuel burns off, the total mass decreases while the percentage balance between the front and rear axles remains virtually unchanged. This is an engineering masterpiece: handling characteristics stay consistent from Lap 1 to Lap 57.
Summary: An F1 Car's Anatomical Map
1. Front: Driver's legs, steering rack, and front suspension components.
2. Center: The driver inside the carbon-fiber capsule (monocoque).
3. Behind the driver: Flexible fuel cell and batteries.
4. Behind the fuel tank: V6 engine, turbocharger, and hybrid motor-generators.
5. Rear: Gearbox, rear suspension, and exhaust system.
Every component in this chain is fitted with sub-millimeter precision. In upcoming articles, we will break down how all this mass stays glued to the track using suspension, ballast, and insane aerodynamic downforce!
